WP-S01 / WP-S02 / WP-S03 20W/30W/40W IPX66 Waterproof Wall-Mounted PA Speaker

WP-S01 / WP-S02 / WP-S03 20W/30W/40W IPX66 Waterproof Wall-Mounted PA Speaker

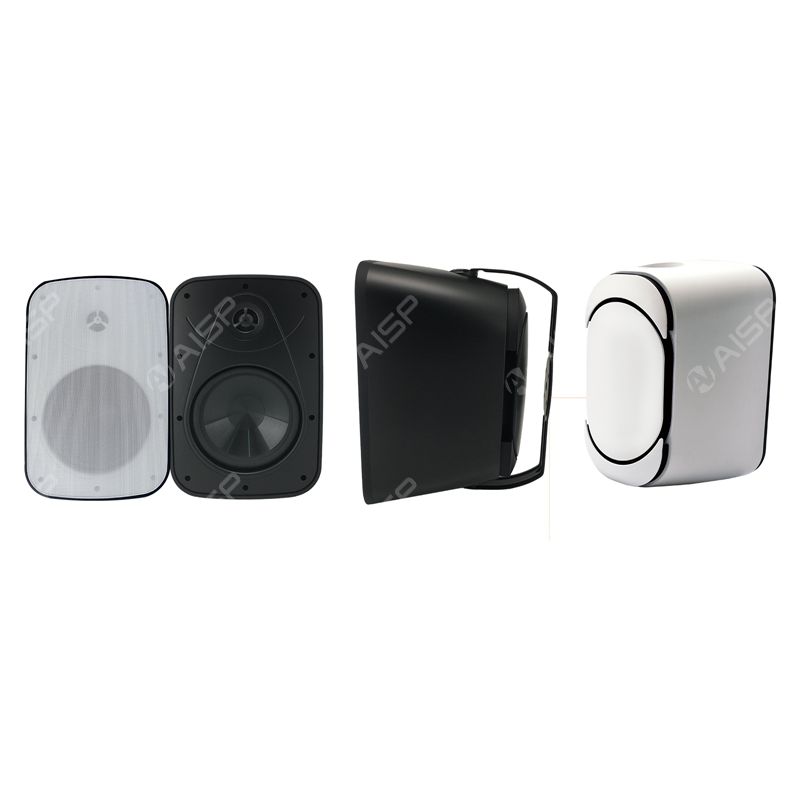

The S01/02/03 series Waterproof Wall Mount Speaker is developed to redefine a new design trend for wall mount speakers market where Beauty, Durability, Performance and User Friendliness come as ONE CORE CONCEPT.

This speaker can deliver impeccable audio as well as clean and clear announcements for public address systems. The Unique Rear Covers not only helped to cover the Euro-block Connector and Bypass Selector (PA Transformer) in the rear of the speaker, it is also designed to merge seamlessly with the OBE Bass Radiator and the overall design of Speakers giving it an extra touch of modern sophistication.

Share:
Inquire Now

Exclusive optimal bass enhancement radiator technology

IP66, all weather speaker for indoor and outdoor use

With power tap for 70V/100V and 8Ω

Rated output power 20W/40W

1×5", 1×6.5" or 1x8"for woofer and 1×1" for tweeter

Quick installation with water-proof brackets

Fashionable appearance with extraordinary sound quality

Ideal for schools, offices, hotels, stations and meeting rooms public address system

Speaker UnitRated PowerFrequency Range±3SensitivityTapsImpedanceDimensions
5"x1  1"x120W100 Hz-20k Hz85dB8Ω-0-20W-10W-5W-2.5W258mm x 170mm x 168mm
6.5"x1  1"x140W90 Hz-20k Hz86dB8Ω-0-40W-20W-10W-5W285mm x 198mm x 195mm
8"x1   1"x150W80 Hz-20k Hz87dB8Ω-0-50W-25W-12.5W-6.25W381mm x 250mm x 250mm
