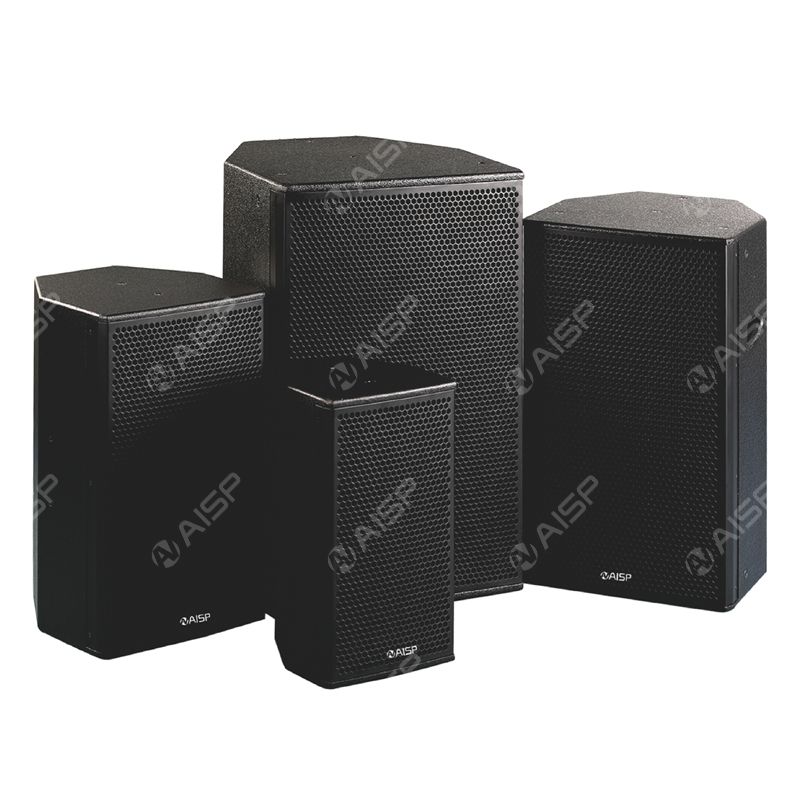

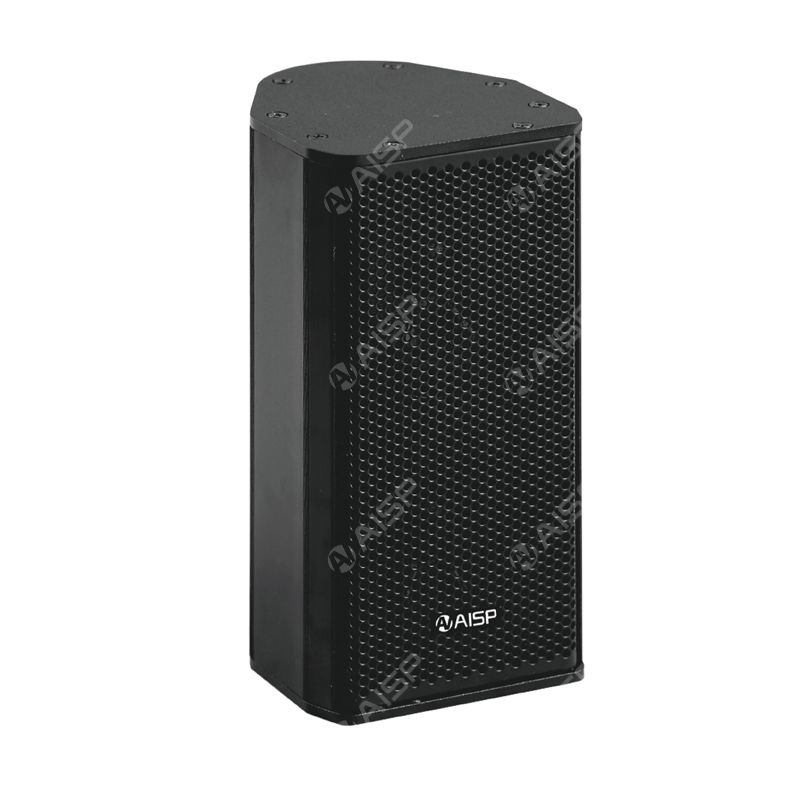

AB8663 / AB8664 / AB8665 / AB8666 / AB8666A

Apply to the venues of all sizes where voice evacuation is needed: shopping malls, plazas, hospitals, exhibition & convention centers, star hotels, schools, etc.

Inquire Now

Specification

Model	AB8663	AB8664	AB8665	AB8666	AB8666A
Drive Unit	LF8" * 1 HF1.4" * 1	LF10" * 1 HF1.4" * 1	LF12" * 1 HF1.75" * 1	LF15" * 1 HF1.75" * 1	LF15" * 1 HF1.75" * 1
Frequency Response	68Hz ～ 19kHz	65Hz ～ 19kHz	55Hz ～ 19kHz	55Hz ～ 19kHz	55Hz ～ 20kHz
Sensitivity	94dB ± 2dB	96dB ± 2dB	97dB ± 2dB	99dB ± 2dB	100dB ± 2dB
Maximum Sound Level	116dB ± 2dB	120dB ± 2dB	122dB ± 2dB	126dB ± 2dB	129dB ± 2dB
Rated Impedance	8 Ω	8 Ω	8 Ω	8 Ω	8 Ω
Rated Power	150W	250W	350W	400W	400W
Direction (H*V)	90° * 40°	90° * 60°	90° * 60°	90° * 60°	90° * 40°
Dimensions (HWD)mm	430 * 240 * 245	515 * 315 * 287	601 * 364 * 385	690 * 438 * 438	450 * 446 * 696
Net Weight	11 kg	14.6 kg	24 kg	28 kg	30 kg
