Mixer Amplifier

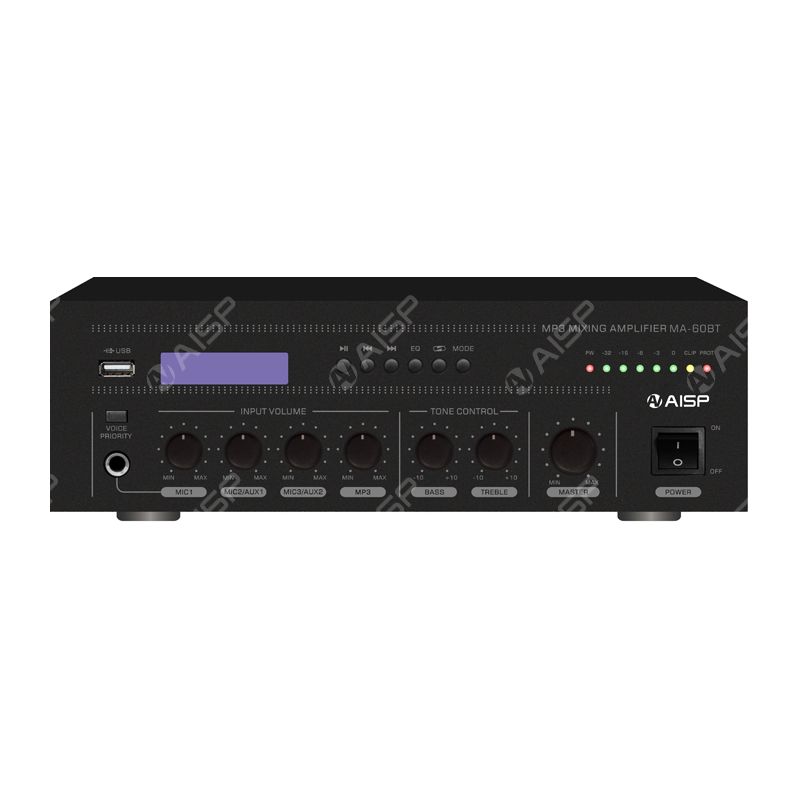

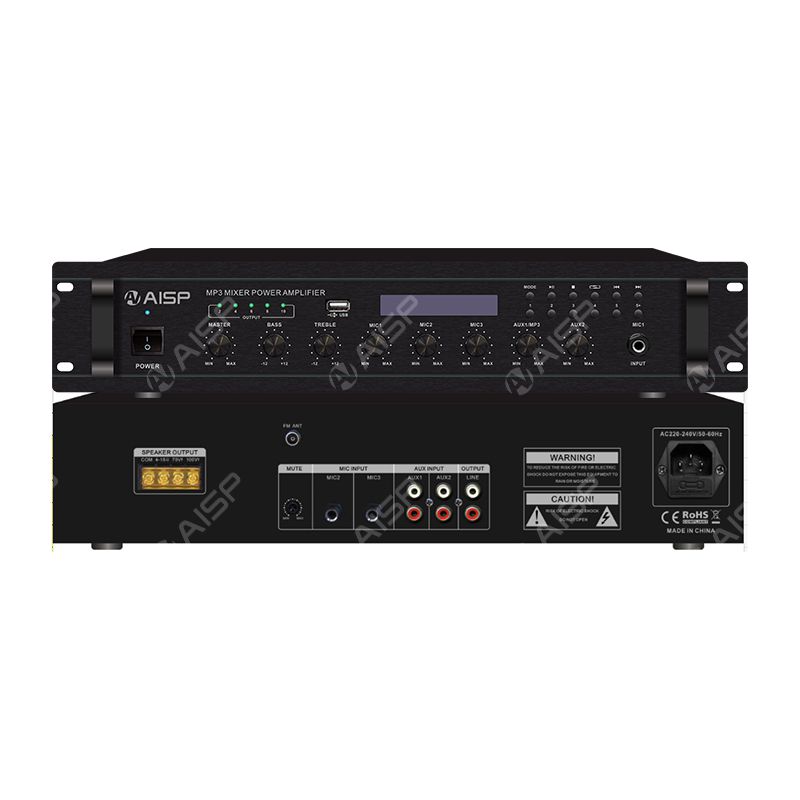

This MA-60D series mixer amplifier has a wide range of output power ratings and enhanced cost-effectiveness with this model: 60W. The mixer amplifier is integrated with a USB player for MP3 playback. It is design to work with high impedance (100V) speaker system. The 5-segments LED output meter is to monitor the output signal level. It is standard 19" rack-mountable with earpieces provided and only takes up to 2U of space. This product can be called usb speaker amplifier, or a music mixer amplifier.
2U design with display screen,LED level display
Rated power 60W/120W/240W/350W/500W/650W
Voltage output: 4-16 ohms(Ω)/ 70V/100V
3MIC and 2 AUX input, with Bluetooth, MP3, FM
With Master volume control, bass and treble control and independent zone control
Protection for short circuit, overload or overheat
| Product Model | MA-60D | MA-120D | MA-240D | MA-350D | MA-500D | MA-650D |
| Rated Power | 60W 120W | 240W | 350W | 500W | 650W | |
| Output Terminals | Low impedance:4-16 ohms(Ω) | |||||
| Voltage line:70V(70 ohms(Ω)) 100V(143 ohms(Ω)) | ||||||
| Voltage line:70V(38 ohms(Ω)) 100V(77 ohms(Ω)) | ||||||
| Voltage line:70V(19 ohms(Ω)) 100V(39 ohms(Ω)) | ||||||
| Voltage line:70V(14 ohms(Ω)) 100V(28 ohms(Ω)) | ||||||
| Voltage line:70V(10 ohms(Ω)) 100V(20 ohms(Ω)) | ||||||
| MIC. Input | MIC1/MIC2/MIC3:600 ohms(Ω) 10-15 mV ,unbalanced | |||||
| LINE Input | AUX1/AUX2:10k ohms(Ω) 200-470 mV ,unbalanced | |||||
| AUX Output | 0.775V (0 dB) | |||||
| Freq. Response | 60 Hz ~ 15k Hz (± 3 dB) | |||||
| THD | <0.5% at 1kHz,1/3 of rated power | |||||
| S/N | Line:85 dB , MIC:>72 dB | |||||
| Tone | BASS:100 Hz (± 10 dB) , TREBLE:12k Hz (± 10 dB) | |||||
| Mute Sensitivity | MIC1 overrides MIC2/MIC3/AUX1/AUX2 with 0~30 dB attenuation | |||||
| Controls | Volume controls,tone/treble control,mute control,power control | |||||
| Cooling Fan | DC 12V FAN | |||||
| Indicator | AC:'POWER',level:'2,4,6,8,10' | |||||
| Protection | FUSE×4A | FUSE×4A | FUSE×6A | FUSE×6A | FUSE×8A | / |
| AC FUSE,short circuit,overload,high temperature | ||||||
| Power Cord | (3×0.75 mm²)×1.5M (standard) | |||||
| AC Power | AC220V~240V 50-60Hz | |||||
| Product Consumption | 95W | 175W | 350W | 485W | 675W | / |
| Dimensions | 89(H)×483(W)×366(D) mm | |||||
| Packing Size | 185(H)×520(W)×435(D) mm | |||||
| Net Weight | 10.50kg | 11.50kg | 13.80kg | 14.50kg | 15.50kg | / |
| Gross Weight | 11.80kg | 13.10kg | 15.40kg | 15.80kg | 17.20kg | / |
