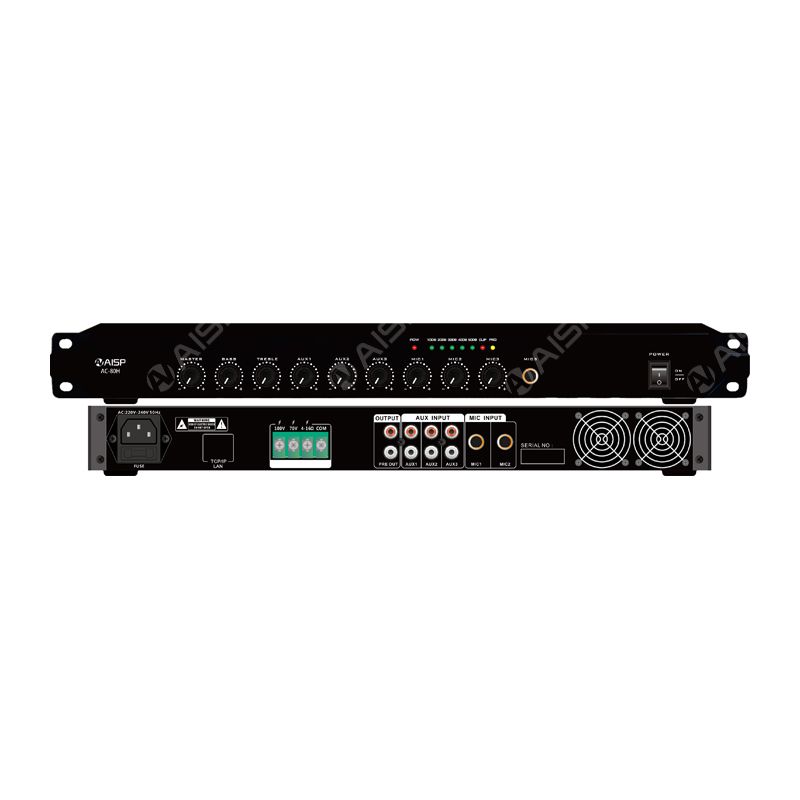

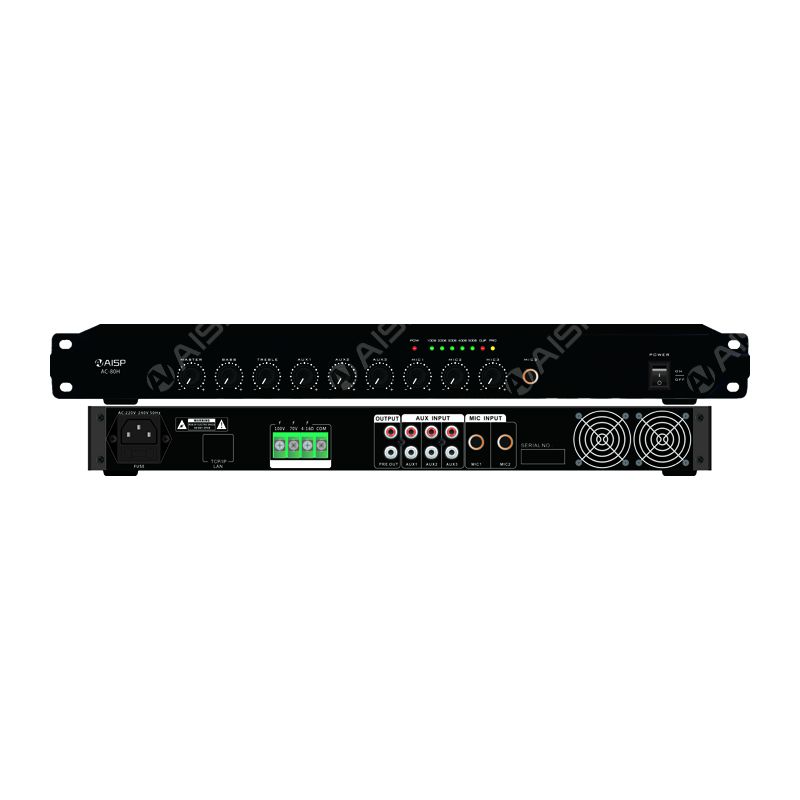

Mixer Amplifier
Suitable for villas, fitness studios, dance studios, public or private gardens, small and medium-sized supermarkets, shops, markets, stations
1 MIC with the highest priority,6 input and 3 AUX input, 3 MIC input
With master volume control and dependant signal adjustment control
Built-in intelligent power management, it will enter the standby state if no signal
Supports 70v-100v, 4-164~16 Ω output, to meet the use of different occasions
Product Model | AC-80H | AC-160H | AC-240H | AC-360H | AC-460H | AC-560H | AC-660H |
Rated Output | 80W | 160W | 240W | 360W | 460W | 560W | 660W |
Output Voltage | 70V，100V，4-16Ω | ||||||
Input Sensitivity/Impedance | MIC1，2，3：5mV/600Ω，unbalanced TS terminal input AUX1，2，3：350mV/10KΩ，unbalanced RCA terminal input | ||||||
Output Sensitivity/Impedance | 1000mV/470Ω，unbalanced TS terminal input | ||||||
Frequency | 50-16KHz(+1dB，-3dB) | ||||||
SNR | MIC1，2，3：66dB ; AUX1，2，3：80dB | ||||||
Distortion | 1KHz 0.5%，1/3 output power | ||||||
Protection | Overheat protection, overload protection&short circuit protection | ||||||
Dimensions(W×H×D) | 484×44×360mm | 484×88×360mm | |||||
Weight | 6Kg | 8Kg | 12Kg | 14Kg | 16Kg | 17Kg | 18Kg |
