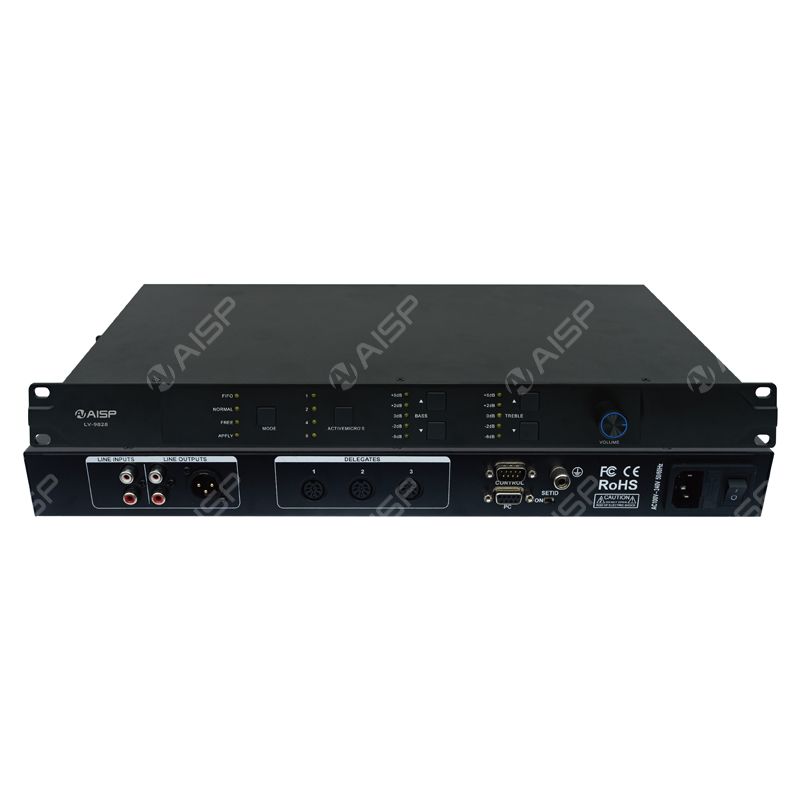

Digital Conference System
Apply to the venues of all sizes where voice evacuation is needed: shopping malls, plazas, hospitals, exhibition & convention centers, star hotels, schools, etc.
Main Unit can support 64 microphones, and with load and short circuit protection function
Operating modes: FIFO, NORMAL, FREE, APPLY, limit 1/2/4/6 adjustable
Adopt the original clock synchronization and transmission technology, no delay transmission
Volume indicator and adjustment in the front panel, clear and simple
With 1 RCA input and out, 1 canon output
3 Channels 8-pin aviation plug conference cable, 2 RS-232 interface
Microphone Capacity | Main Power | Dimensions (LxWxH) |
64 units | 100-120V AC/200-240V AC by switch | 484x303x44mm |
Total Harmonic Distortion | Net Weight | Dynamic Range |
<0.05% | 2Kg | >80dB |
Output Power | Signal To Noise Ratio | Static Power Consumption |
50W | >78dB(A) | 10W |
Frequency Response | Output Load | Installation Method |
20-20KHz | >1KΩ | 19-inch standard cabinet |
