Digital Conference System
Apply to the venues of all sizes where voice evacuation is needed: shopping malls, plazas, hospitals, exhibition & convention centers, star hotels, schools, etc.

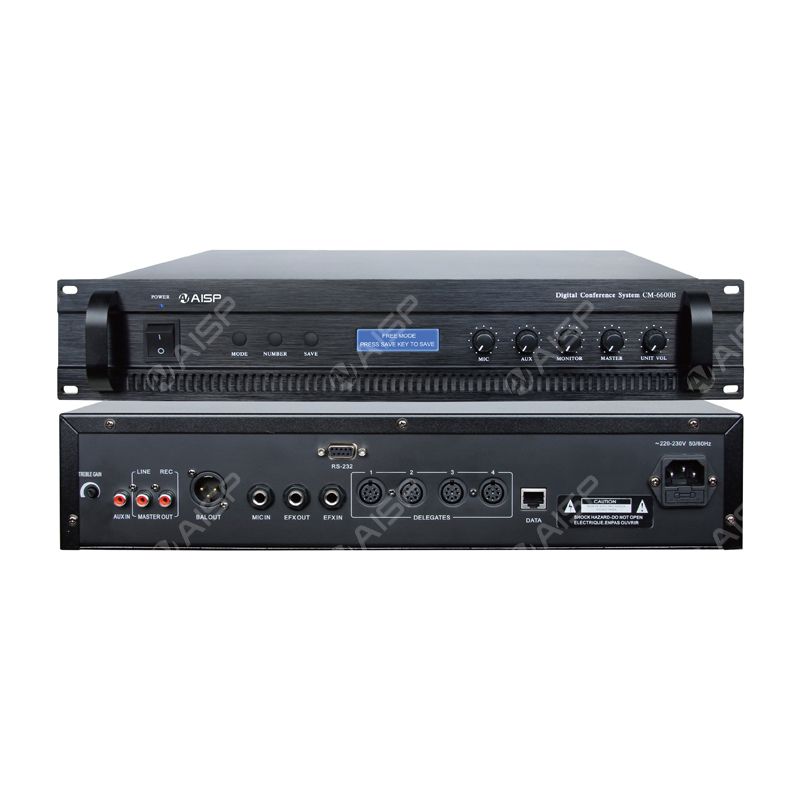

CM-6600B
Main unit can support 60 microphone units, it could be extend to support 250 units with extension power unit.
Operating modes: Free,Limit (1-9),FlFO(1-9) and Timing.
Built-in monitoring loudspeaker.
Supports video camera auto-track with video processor.
Supports USB recording (CM-6600B).
Dante-enabled Products DCN-6600B(Option).

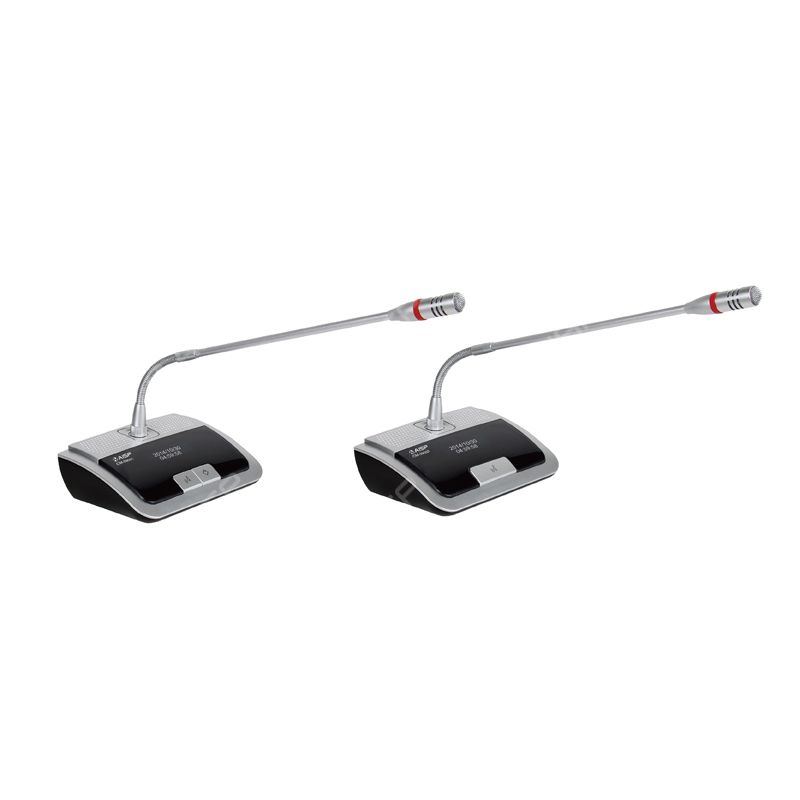

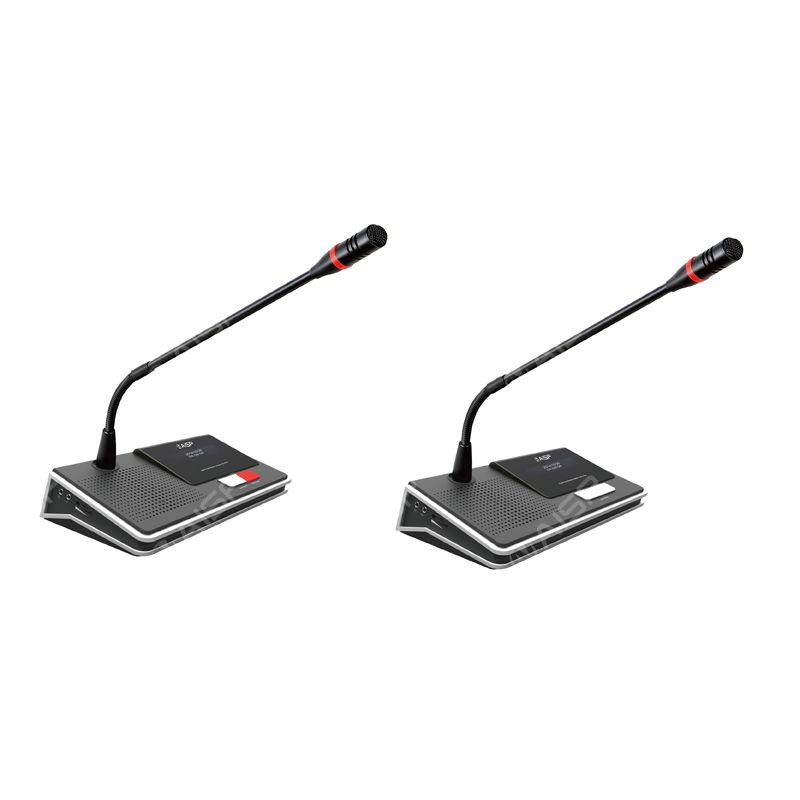

3900 Digital Conference System
Supports discuss and camera auto-tracking function.
The system power supply for all microphone units is provided by the main unit at 24 safe voltages.
OLED display. Display current date and time when standby and show speaking time when microphone on (Count up or count down option).
Built-in high-fidelity speaker and earphone jack. (CM-3910C / CM-3910D).
CM-6600B
Technical Parameter | |
Frequency Response | 100-18kHz |
Power Supply | 230V AC 50/60 Hz |
Power Consumption | 350W |
Output Voltage | 24V DC |
S/N | >75BdB |
T.H.D | <0.05% |
System Outlets | 8P-DIN x4 |
Control | RS232 interface |
N.W | 8kg |
Dimensions | 483 x360 x88 mm, 2 U rack 19" |
3900 Digital Conference System
Technical Parameter | |
Connector | 8P-DIN |
Headphone Output | Mini Jack (CM-3910C / CM-3910D) |
Rec Output | Mini Jack (CM-3910C / CM-3910D) |
Sound Pick-up Distance | 20-50cm |
Frequency Response | 40Hz-16kHz |
Sensitivity | -44dB+2dB |
S/N Ratio | 85dB |
Length Of Gooseneck Mic | 42cm |
Consumption | <2W |
Dimensions | CM-3900C/D:207x117 x60mm; CM-3910C/D:210x138 x52mm |
N.W. | CM-3900C/D:0.7kg; CM-3910C/D:0.83kg |
