Digital Conference System
Apply to the venues of all sizes where voice evacuation is needed: shopping malls, plazas, hospitals, exhibition & convention centers, star hotels, schools, etc.

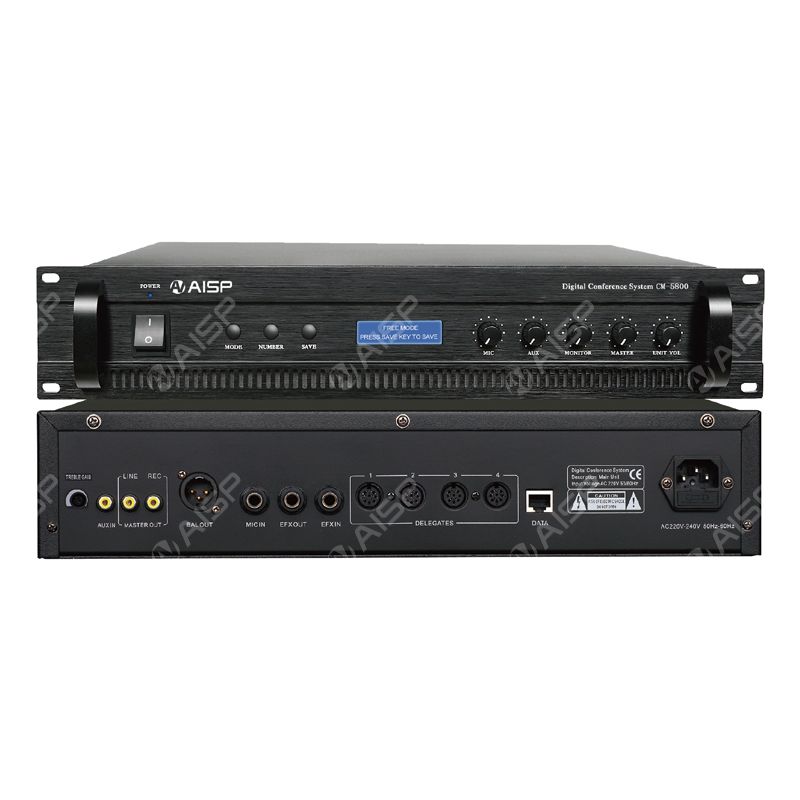

CM-5800
extend to support 250 units with extension power unit.
Operating modes: Free, Limit (1-9),FlFO(1-9) and Timing
Built-in monitoring loudspeaker.
Supports video camera auto-track with video processor
Supports USB recording (CM-5800).
Dante-enabled Products DCN-5800(Option).

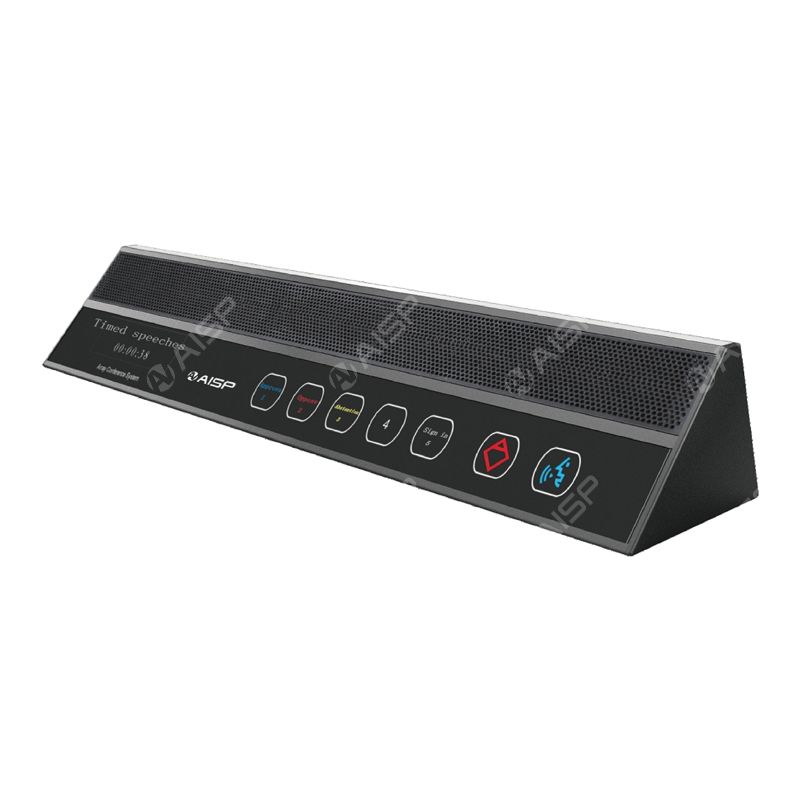

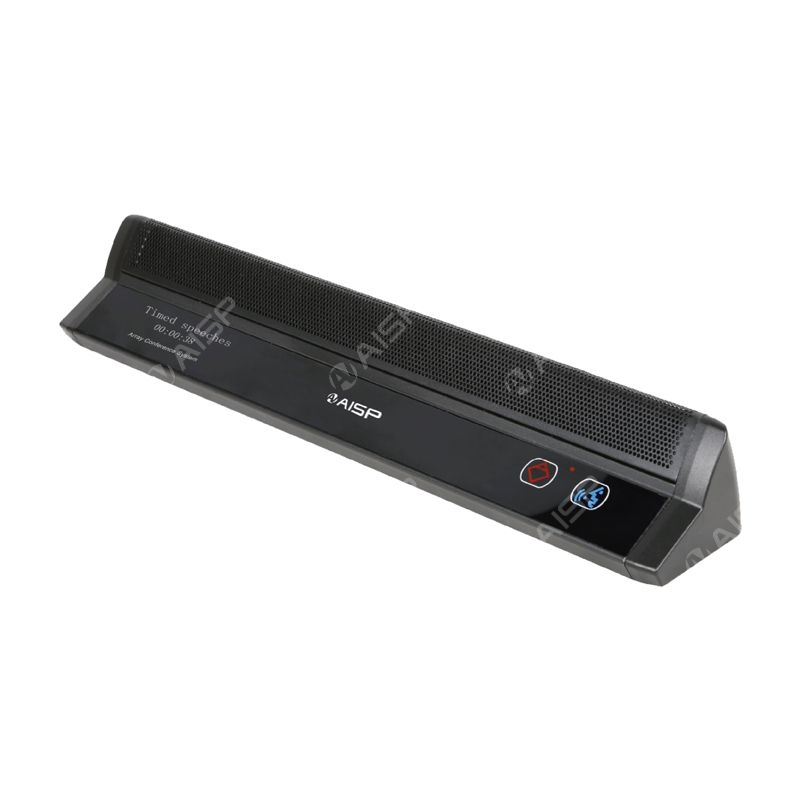

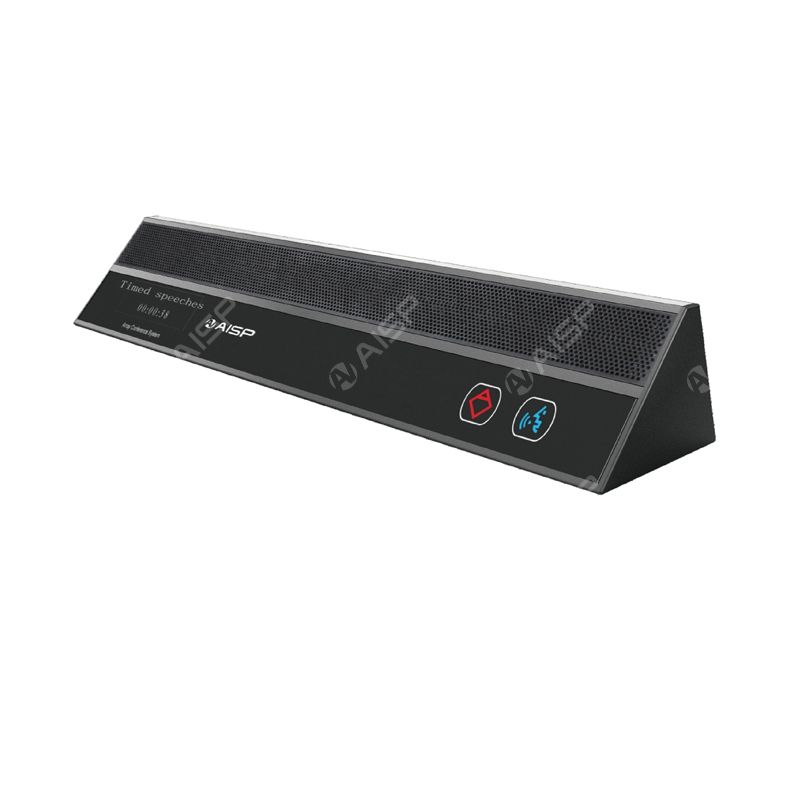

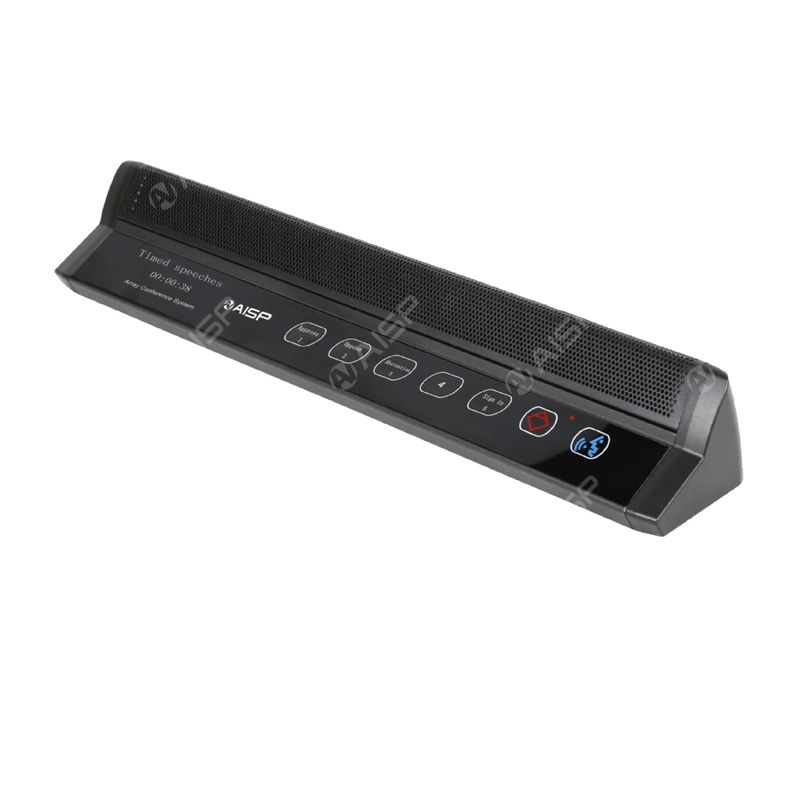

5810 Digital Array Conference System
Supports discuss and camera auto-track function.
The system power supply for all microphone units is provided by the main unit at 24 safe voltages.
OLED display. Display current date and time when standby and show speaking time when microphone on (Count up or count down option) Supports voting function(CM-5810C/CM-5810D,CM-5811C/CM-5811D)
CM-5800
Technical Parameter | |
Frequency Response | 100-18kHz |
Power Supply | 230VAC 50/60 Hz |
Power Consumption | 350W |
Output Voltage | 24V DC |
S/N | >75BdB |
T.H.D | <0.05% |
System Outlets | 8P-DIN x4 |
Control | RS232 interface |
N.W | 8kg |
Dimensions | 483x360x88 mm, 2 Urack 19” |

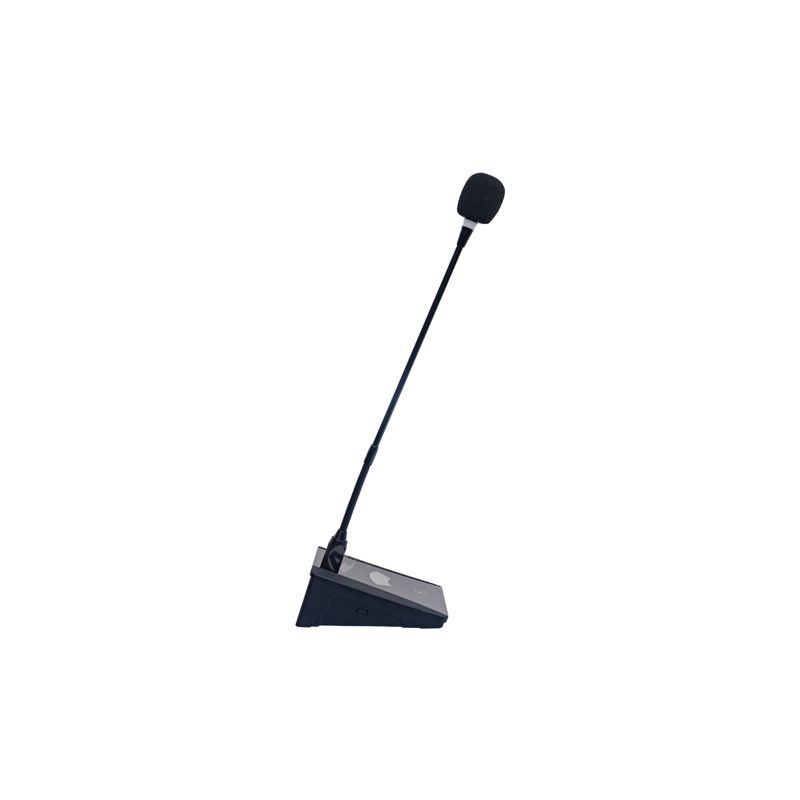

5810 Digital Array Conference System
Technical Parameter | |
Connector | 8P-DIN |
Sound Pick-up Distance: | 20-80cm |
Frequency Response | 40Hz-16kHz |
Sensitivity | -44dB +2dB |
S/N ratio | 85dB |
Consumption | <2W |
Dimensions | CM-5800C/D CM-5810 C/D:325x60x50mm CM-5801C/D CM-5811 C/D:304x63x53mm |
N.W. | 0.56kg |
