Class-D Amplifier
Suitable for villas, fitness studios, dance studios, public or private gardens, small and medium-sized supermarkets, shops, markets, stations
Wide AC input from 110V to 230V
Each four channels with high-cut filter
Each input with separate gain control
Four channels separate speaker outputs 4-16Ω/100V
Switching power technology digital power amplifier
Class-D PA power amplifier of minimum power consumption
Balanced XLR input by phoenix connector for four channels
Separate four channels indicators for protection, clip, input and output
Complete short circuit, overload, high temp, clip and DC protection

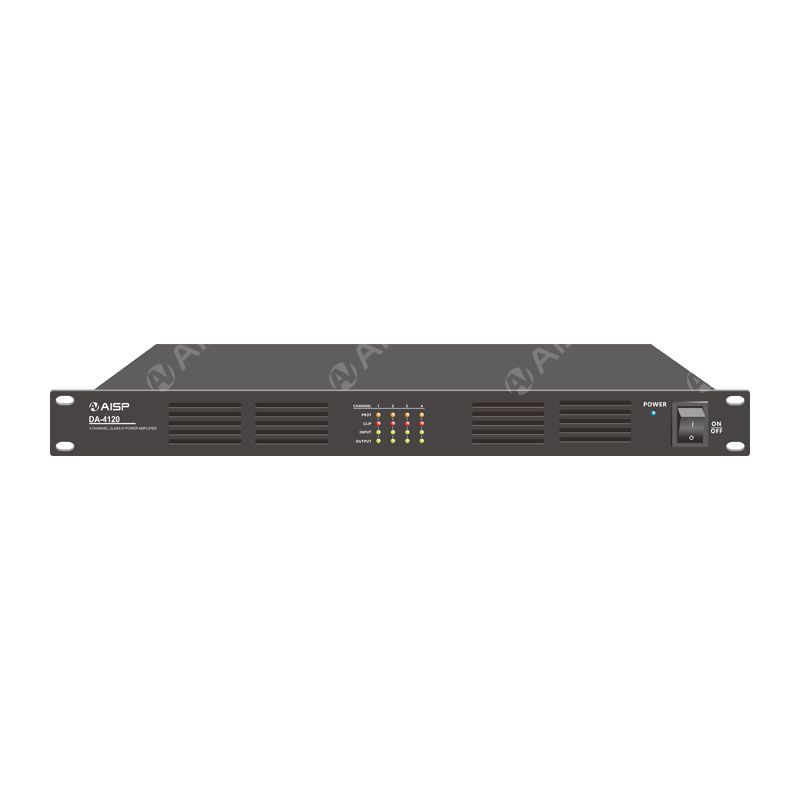

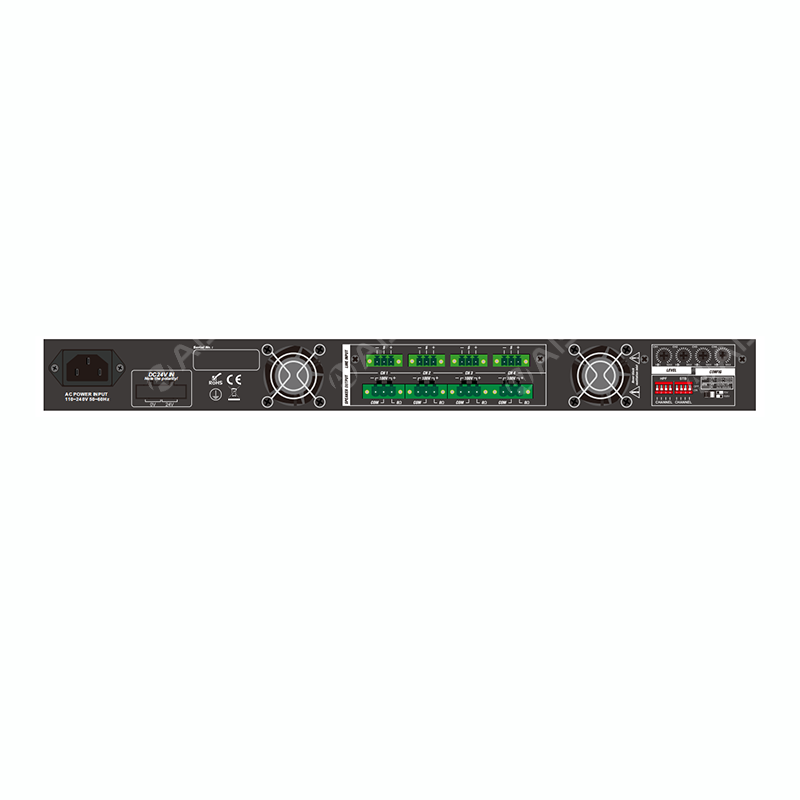

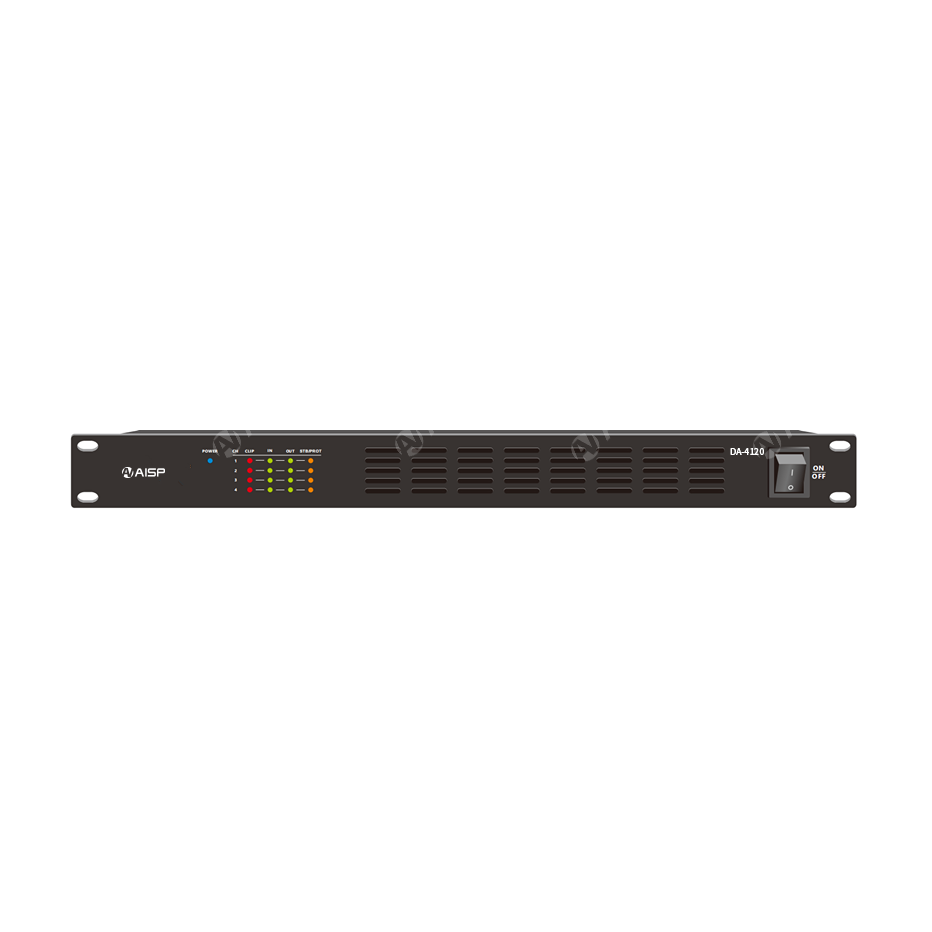

Product Model | DA-4120 | DA-4240 | DA-4350 | DA-4500 |
Rated Output | 4x120W | 4x240W | 4x350W | 4x500W |
THD | <0.1% (1KHz/-3dBv, 100W) | |||
Speaker Output | 8Ω & 100V | |||
Frequency Response | L/H Cut OFF 20Hz-20KHz (+1/-2dB) L/H Cut ON 70Hz-10KHz (+1/-3dB) | |||
Input | 0.775V, 0dBu, balanced phoenix connector by four channels | |||
Input Impedance | 10KΩ | |||
Power Consumption | 1200W | |||
S/N Ratio | >80dB | |||
Crosstalk | >60dB, 1KHz, Max output | |||
Power Supply | Wide AC input from 110V & 230V, 50-60Hz | |||
Dimensions | 482(W)x420(D)x44(H) mm | |||
Weight | 9.0kg N.W | |||
