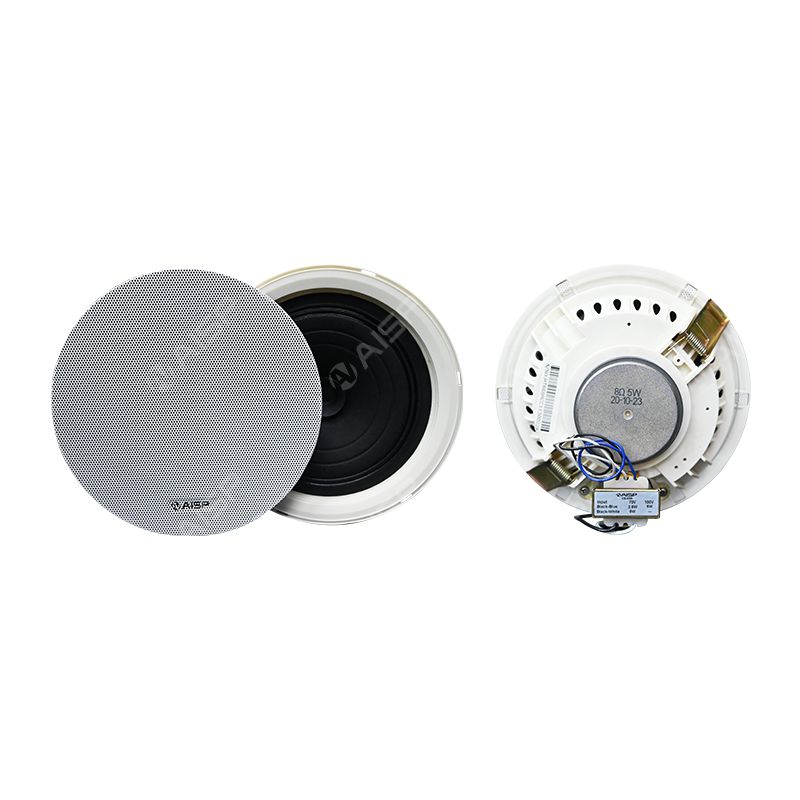

Ceiling Speaker
CS-668 is frameless Ceiling Speaker adopts the fashionable thin-edge plane big cylinder and the carbon alloy aluminum mesh design with the RAL white coating so as to integrate with any indoor place perfectly. Equipped with a 6.5” full-range designed loudspeaker with magnetic circuit encapsulated with special engineering plastic process, and the drum paper formed with tripping and hot pressing of algae salved organisms, for the purpose of super-strong reproduction of voice and music. It is able to bear the double rated powers within a short period, so as to ensure the high reliability of the loudspeaker under extreme conditions, prolong the service life, and reduce the possibility of occurrence of fault or degradation of performance to a great extent.
6.5 inch Frameless
Aluminum Grille
70/100V,, Rated Power:6W
Max. SPL:98±2dB
Freq. Resp.:140Hz - 18kHz
Sensitivity 93±2dB
Cutout size:Ø165-170mm
In-ceiling quick installation by spring clip
| Speaker Unit | Rated Power | Input Voltage |
| 6.5"×1 | 6W | 70V/100V |
| Sensitivity(1m,1W) | Max SPL(1m) | Frequency |
| 90dB | 100dB | 110-18kHz |
| Opening Hole | Dimensions | Weight |
| 170mm | 190.5*70mm | 0.68Kg |
