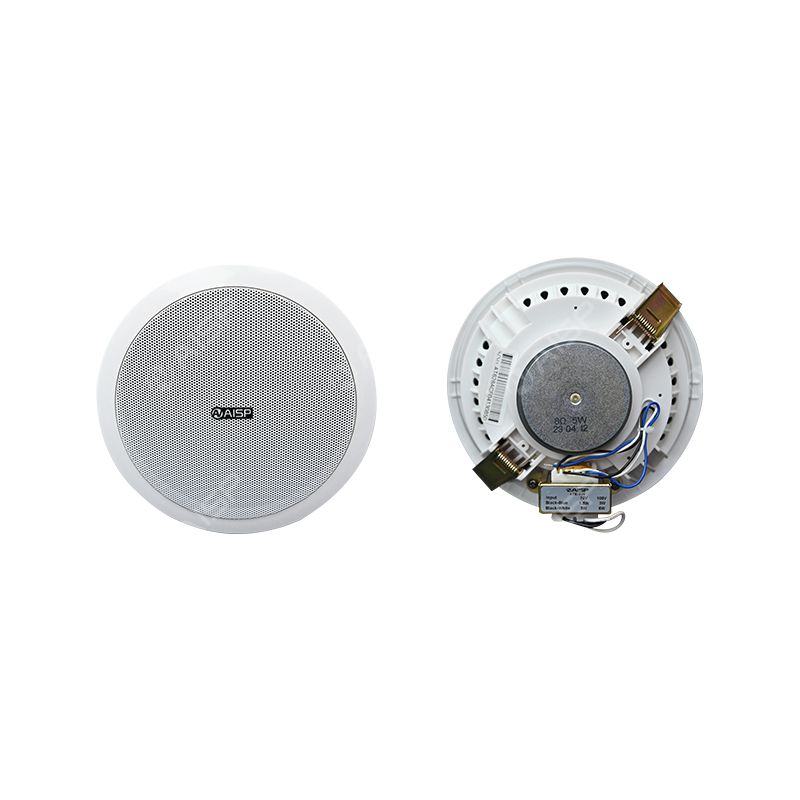

ATS-628 6.5'' 6W Ceiling Speaker

This The ATS-628 is a ceiling speaker with a 70V/100V transformer built in. The 70V/100V transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible.
The built-in 6.5" speaker driver is designed of wide frequency response 90-20kHz, the multiple terminals can be applied to different occasions vary in area sizes and background noises; It is made of high quality engineering plastic, which ensures long-term durability, and will never be out of shape or fading; Spring clip clamp makes the easy and secure installation; Driver surround excellent damping, long life, clear and sonorous sound.
It is an ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed

Inquire Now

Feature
Specification

6.5" bass unit with magnetic circuit encapsulated of special engineering plastic process;

Meet the IEC 268-5 power handling capacity (PHC) standard;

Run continuously for 100 hours and carry out simulating acoustic feedback exposure (SAFE) test;

Bear double rated powers within a short period to ensure its high reliability under extreme conditions, prolong its service life, and reduce the possibility of occurrence of fault or degradation;

Speaker Unit	Rated Power	Input Voltage
6.5"×1	6W	70V/100V
Sensitivity(1m,1W)	Max SPL(1m)	Frequency
93dB±2dB	98dB±2dB	110-18kHz
Opening Hole	Dimensions	Weight
165mm-170mm	70*186mm	0.5Kg
