Audio Matrix System
Suitable for Medium to large audio projects such as hotel, supermarket, shopping mall, resthome, school, etc

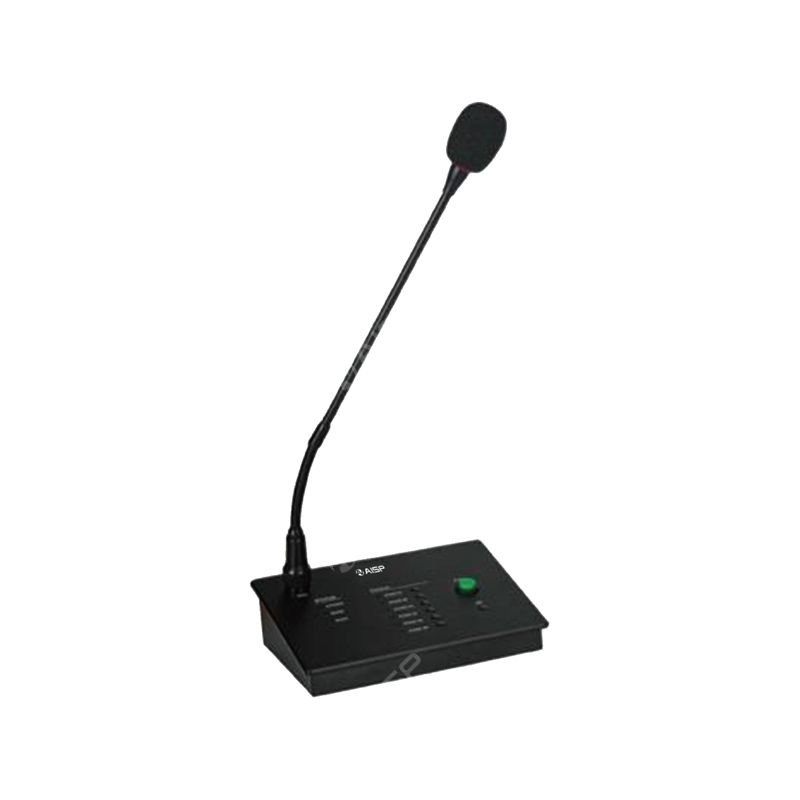

RS485 remote paging microphone.
Each microphone of 6 zone capacity.
System support 8 remote microphones of loop connection.
6 zone selection buttons and all zone button.
Two RJ45 ports for connection with FA-500R ampliifer and next remote microphone.
Support PPT and normal paging two modes.
CAT5 or CAT6 cable communication up to 600 meters.
POE power supply from M X - 6 1 2 0 controller.
Description | 6 zone Remote Microphone |
Power Consumption | 3W |
Zone Capacity | 6 Zones |
System Capacity | 8 Remote microphones |
Line Inputs | 350mV, 10kΩ |
Mic Input | 5mV, 600Ω |
Frequency Response | 80Hz~16kHz |
THD | 1% at RMS,1KHz |
S/N Ratio | >70dB |
Operating Temp | -20℃ to +70 |
Power Supply | DC24V, ±20% |
Humidity | <95% no condensation |
Dimension | 256(W)×149(H)×52(D) mm |
Weight | 1.5kg |
